Product Details:
|
| HDMI Compliance: | HDMI 1.4b | Video Resolutions: | 4K2K@30Hz YUV4:4:4、RGB4:4:4 |
|---|---|---|---|
| Color Depth: | 8-bit | Color Space: | RGB, YUV4:4:4, YUV 4:2:2 |
| HDMI Audio Formats: | LPCM 2.0 | Power Supply: | Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU Standards, CE/FCC/UL Certified) |
| Power Consumption: | 7.8W (max) | Product Name: | 4K HDMI Multiviewer |
| Highlight: | HDMI 4K Multiviewer,LPCM 2.0 HDMI 4K Multiviewer,HDMI Quad Screen Splitter |
||

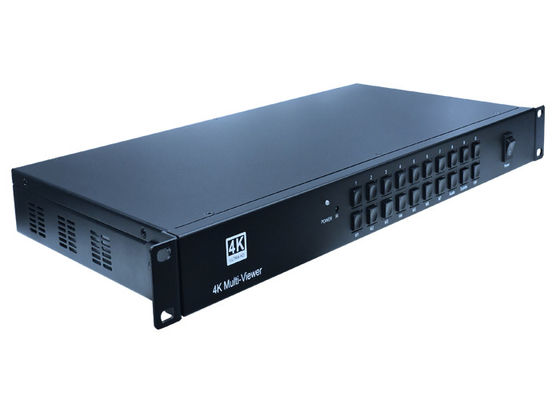

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output
1. Introduction
4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output;
This switcher is a suitable solution for presentation purpose at classroom and conference room.
2. Features
☆ HDMI 1.4b, HDCP 1.4 compliant;
☆ Input video resolution up to 1080p@60Hz, Output up to 4K2K@30Hz ☆ 9x HDMI inputs, 1x HDMI
and 1x de-embedded analog audio output ☆ Fast seamless switching with scaling up to 3840x2160p (4K);
☆ Supports 1/2/4/9 windows multi-view modes;
☆ Display 4x full HD signals within one 4K display with pixel-to-pixel quality;
☆ Control is via on-panel button, IR, RS-232, LAN or Web GUI;
☆ 1U rack mounted design;
☆ 4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output;
3. Specification
| HDMI Compliance | HDMI 1.4b | |
| HDCP Compliance | HDCP 1.4 | |
| Video Bandwidth | 3Gbps | |
| Video Resolutions | 4K2K@30Hz YUV4:4:4,RGB4:4:4 | |
| Color Depth | 8-bit | |
| Color Space | RGB, YUV4:4:4, YUV 4:2:2 | |
| HDMI Audio | LPCM 2.0 | |
| Formats | ||
| ESD Protection | Human-body Model: | |
| ±8kV (Air-gap discharge) , ±4kV (Contact discharge) | ||

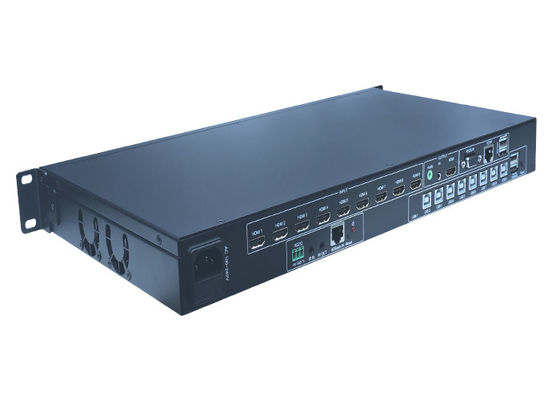

| Connections | ||
| 9x HDMI Type A [19-pin female] | ||
| Inputs | 1x RJ45 [8-pin female] | |
| 1x RS-232 [Phoenix jack] | ||
| 1x USB [USB-A] | ||
| 1x IR EXT [3.5mm Stereo Mini-jack] | ||
| Outputs | 1x HDMI Type A [19-pin female] | |
| 1x Audio Out [3.5mm Stereo Mini-jack] | ||
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) | |
| Weight | 2.26kg | |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/1A | |
| (US/EU standards, CE/FCC/UL certified) | ||
| Power | 7.8W (max) | |
| Consumption | ||
| Operating | 0°C ~ 40°C / 32°F ~ 104°F | |
| Temperature | ||
| Storage | -20°C ~ 60°C / -4°F ~ 140°F | |
| Temperature | ||
| Relative Humidity | 20~90% RH (non-condensing) | |
| Product name | 4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output |
