Product Details:
|
| Housing: | Metal Enclosure | Color: | Black |
|---|---|---|---|
| Dimensions: | 185mm (W)×128mm (D)×20mm (H) | Weight: | 595g |
| Power Supply: | Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU Standards, CE/FCC/UL Certified) | Power Consumption: | 7.68W (max) |
| Highlight: | Quad HDMI Multiviewer,4×1 HDMI Multiviewer,4×1 Quad Multiviewer |
||
Black HDCP 1.4 4K 4×1 Quad HDMI Multiviewer with 4 x HDMI input and 1 x HDMI output
1. Introduction:
The high performance 4×1 quad multi-viewer supports four routes HDMI high definition input contents
be displayed on one HDMI screen and one VGA screen simultaneously. It supports analog audio output
that can be selected different input source. Supports five multi-view display modes. Output resolution can

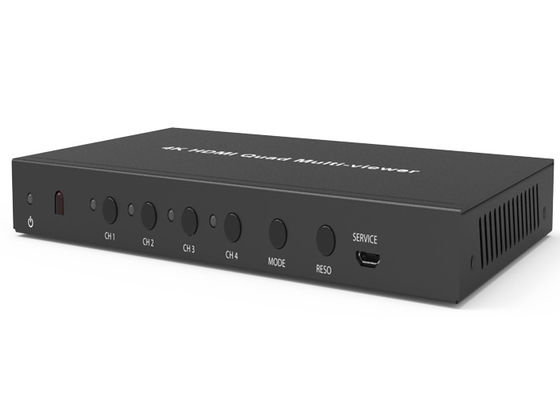

be adjusted and supports the maximum up to 1920×1080@60Hz. The product can be controlled via the
front panel button and remote control.
2. Features:
☆ HDMI 1.4, HDCP 1.4 compliant
☆ Input resolution can automate recognition.
(480i~1080P60,800x600~1920x1080)
☆ Output resolution can be selected by on-panel button and remote control, the maximum up to
1080P@60Hz (1920x1080P@60Hz, 1280x720P@60Hz)
☆ Audio supports LPCM 2CH
☆ Supports 1/2/4 windows multi-view modes
☆ Control is via on-panel button and remote control
☆ Black HDCP 1.4 4K 4×1 Quad HDMI Multiviewer with 4 x HDMI input and 1 x HDMI output
3. Package Contents:
① 1× HDMI 4×1 Quad Multi-Viewer
② 1× 12V/1A DC Power Adapter
③ 1× Remote Control
④ 2× Mounting Ears
⑤ 1× User Manual
4. Specifications:
| Technical | |
| HDMI Compliance | HDMI 1.4b |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolutions | 3840x2160@30Hz,1920x1080@50/60Hz,1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz |
| Color Depth | 8-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Analog Audio Formats | LPCM2.0 44.1KHz 48KHz |
| ESD Protection |
Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |

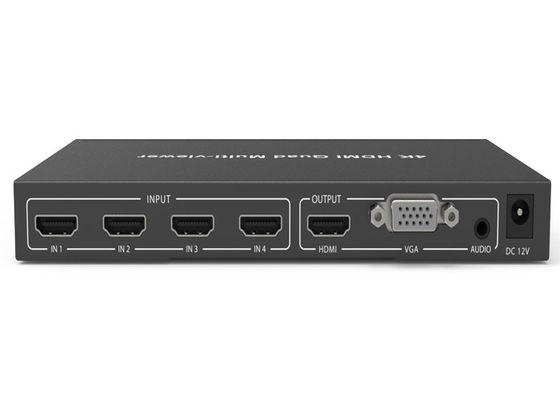

| Connections | |
| Inputs ports |
4x HDMI Type A [19-pin female] 1x SEVICER [Micro USB, Update port] |
| Outputs ports |
1x HDMI Type A [19-pin female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 185mm (W)×128mm (D)×20mm (H) |
| Weight | 595g |
| Power Supply |
Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 7.68W (max) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Product name | Black HDCP 1.4 4K 4×1 Quad HDMI Multiviewer with 4 x HDMI input and 1 x HDMI output |
4. Application Example
Black HDCP 1.4 4K 4×1 Quad HDMI Multiviewer with 4 x HDMI input and 1 x HDMI output
