Product Details:
|
| Interface: | HDMI,DVI,VGA,AV,USB | Resolution: | Up To 1920*1080@60Hz |
|---|---|---|---|
| Controller: | Remote, Button Key, RS232 Serial Port | Power: | Input：DC 12V3A |
| Dimension (package): | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) | Weight: | 4 Port: 1.6 Kg 5~10 Port: 2.5 KG |
| Highlight: | 1080P VGA Video Wall Processor,3x2 Video Wall Processor,2x2 Video Wall Controller |
||
HDMI 1 In 9 Out 1080P VGA Video Wall Processor 2x2 3X3 3x2 4x2
1 In 9 HDMI Outputs 1080P TV Video Wall Controller Can Be Configured As A 2x2,3X3,3x2,4x2,Etc,Vga Video Wall Processor
1, Overview
The controller is designed to be a truly in/out modular video wall processor, to capture, AD convert, route, distribute all-format signal to multiple video wall, including LCD TV,DID, DLP, Plasma, etc., while maintaining a true digital signal.
2, Specification
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) |
4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight |
4 port: 1.6 Kg 5~10 port: 2.5 KG |

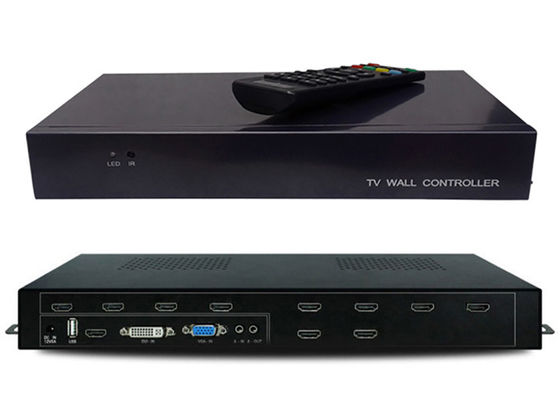

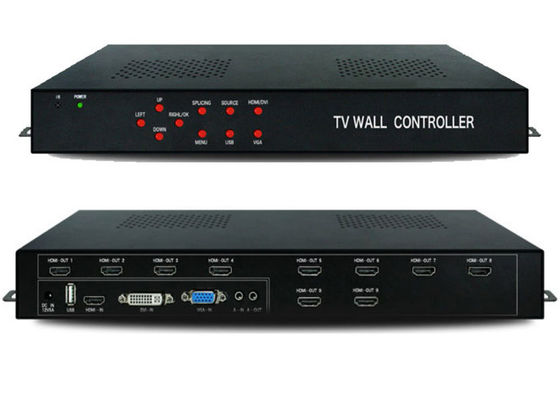

3. Product Pictures:
1 in 9 HDMI outputs 1080P TV Video Wall Controller can be configured as a 2x2,3X3,3x2,4x2,etc,vga video wall processor
4, Key Features
1. Truly in/out modular design: truly concept modular, in/out boards
2. All format signal capture: including composite video, VGA, DVI, HDMI etc.
3. Full digital processing channel inside: Built-in conversion for analog/digital, interlaced/progressive, resolution, aspect ratio and refresh rate.

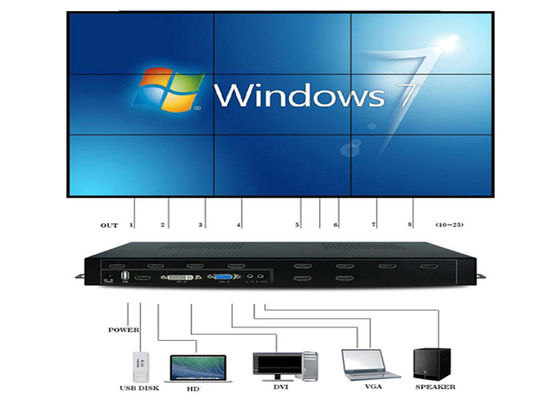

5, System Topology
6, Remote controller
7, Dimension
