Product Details:
|
| Resolution: | Up To 1920*1080@60Hz | Audio: | MP3、WMA、FLAC And So On |
|---|---|---|---|
| Picture: | JPG、BMP、PNG | Warranty Time: | 1 Year |
| Display Modes: | 8 Options | Monitors Supported: | LCD |
| Product Name: | 1 In 4 Out LCD TV Multi Screen Video Wall Controller 2x2 With 8 Wall Modes | ||
| Highlight: | DC12V 3A TV Video Wall Controller,CE LCD TV Video Wall Controller,DC12V 3A LCD Video Wall Controller |
||

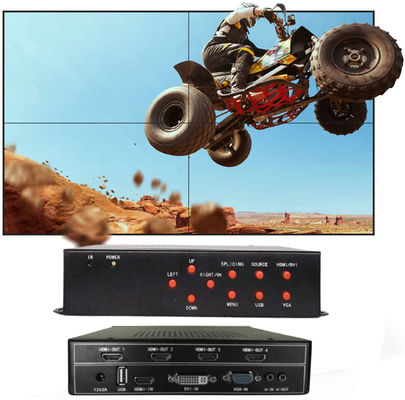

1 In 4 Out LCD TV multi screen Video Wall Controller 2x2 With 8 wall modes
Features:

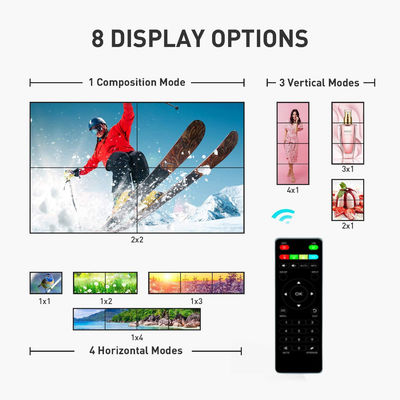

1.Multiple splicing modes
The 1 In 4 Out LCD TV Video Wall Controller With 8 wall modes support 4 channel HDMI output ports
to connect TV wall, and the video splicing output signal can be customized 2x2, 1x3, 3x1, 1x2, 2x1...
2.Multiple input interfaces
Support 1 HDMI, 1 DVI, 1 VGA, 1 USB inputs, you can switch the input video to display or splice.
4.Cascade
Support multiple devices cascade, max 25 channels output
5.Mirror flip
Support 180 degree image flip function for each screen.
Specifications for 1 In 4 Out LCD TV multi screen Video Wall Controller 2x2 With 8 wall modes:
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) |
4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight |
4 port: 1.6 Kg 5~10 port: 2.5 KG |
| Product name | 1 In 4 Out LCD TV multi screen Video Wall Controller 2x2 With 8 wall modes |
Using applications of the 1 In 4 Out LCD TV multi screen Video Wall Controller 2x2 With 8 wall modes:
